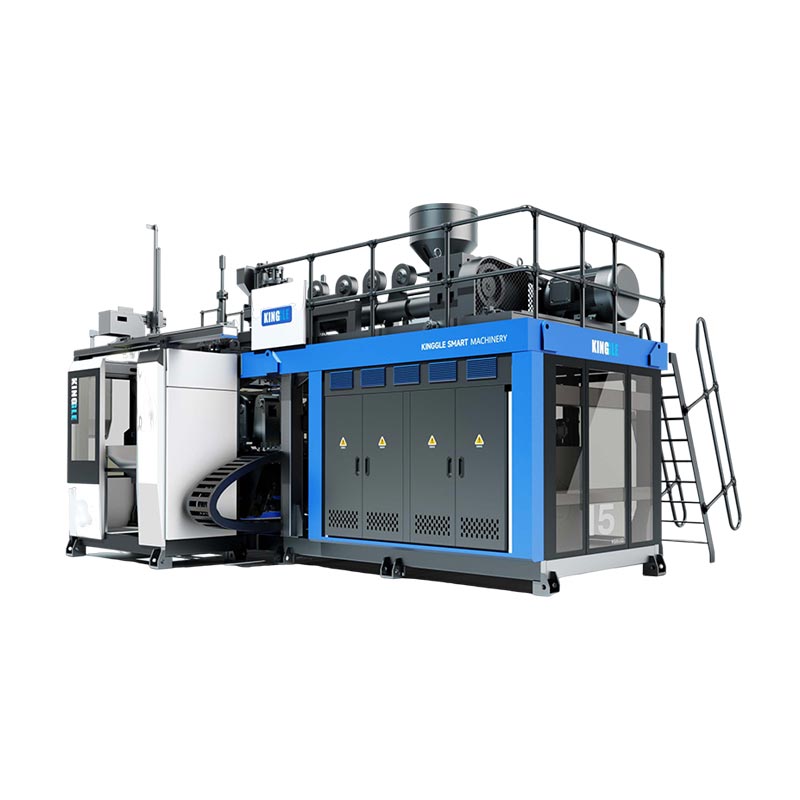

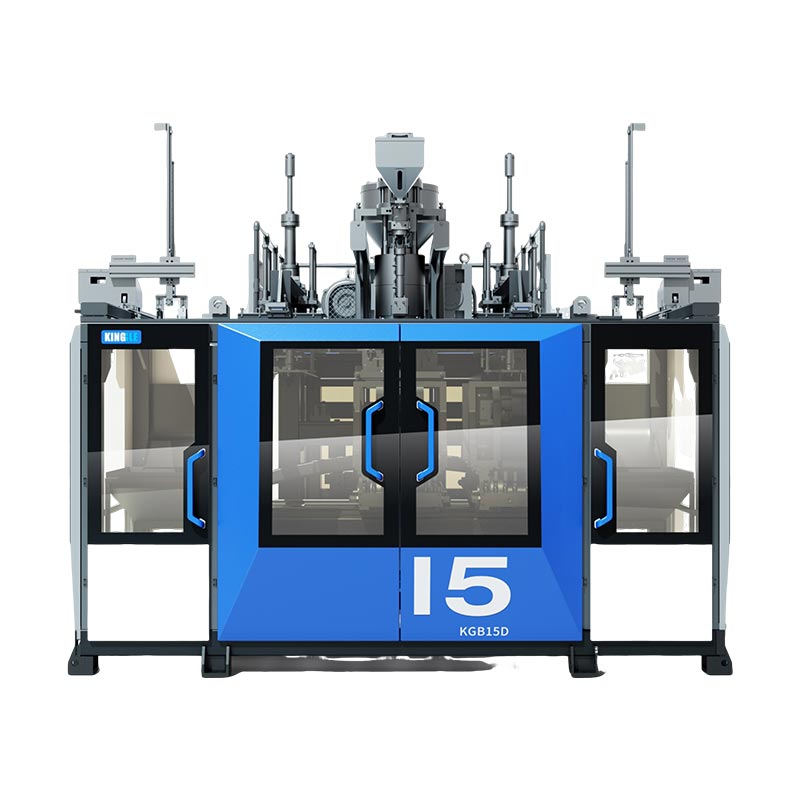

15L Dubawa mai busa na'urar

Model:KGH15D

Yana sauya abubuwan da kuka samo asali tare da Kgh15D, 15L Dubawa ta hanyar moly mold inji aikace-aikacen Exprusion zuwa sabon tsaunin mold! Cikakke don aikace-aikacen moling na atomatik kamar 10L da kwalabe 15l, yana taimaka muku ya mamaye kasuwa tare da fitarwa mai inganci.

Girma: 15lWeight: 18.5t

Aika tambaya

Bayanin Samfura Specification Application

Yana sauya abubuwan da aka samar da kwalban ku tare da Kgh15D, babban ingancin tashar sau biyu wanda ya ɗora kwalban kwalban filastik Molding zuwa sabon tsayi. Tsara don aikace-aikacen kamar 10l da kuma kwalabe 15l, Kgh15D yana tabbatar da ingantaccen kayan kwalliyar masu inganci tare da na musamman daidai. Ko don manyan masana'antu ko al'ada Aikace-aikace, wannan inji ta tabbatar da fitarwa mai tsayi-trier, taimaka muku gaba a kasuwa. Tare da manyan abubuwa da ingantaccen aiki, da Kgh15d yana ba da cikakken bayani don kasuwancin da ke neman ingantawa samarwa da inganta ingancin samfuri.

Fasali da fa'idodi

Matsakaitawa saminku tare da cigaban da muke bugun raga biyu, wanda aka tsara don kwantena har zuwa 15l. Tare da saiti mai sassauza (2, 3, ko 4 na kai na kai mai mutunci), yana ɗaukar kewayon ƙarfafan kwandon, daga ƙananan kayan aiki da inganci mai inganci.
Daidai ne ga aikace-aikacen kamar shamfu, kayan wanki mai wanki, da kuma kayan kunshin kayan kwalliya, wannan inji yana kawo samarwa mai sauri yayin riƙe ingancin farko. Ingancinta da ingantacciyar ƙira suna taimakawa rage rage sharar gida da haɓaka fitarwa, yana yin hakan bayani mai inganci wanda ke ƙara dawowar ku akan saka hannun jari.

Specifications

serial number	Material PE、PP、PVC、PA...	High speed movement mode(curved arm)
serial number	Material PE、PP、PVC、PA...	Machine model:KGH15D
Specifications
1	Max container capacity	15 L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	5.6 M x 3.9 M × 3.5 M
4	Machine weight	18.5T
Clamping Unit
1	Clamping force	200 KN
2	Mold platen size(W×H)	580 MM x500 MM
3	Platen openingstroke	320 MM -800 MM
4	Platen moving stroke	720 MM
5	Max mold size(W×H)	700 MM -500 MM
6	Mold thickness	350 MM -450 MM
Power
1	Servooil pump motor power	22 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.5 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	140 L/min
7	Average energy consumption	40 KW -50 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	180 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	55 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	240 MM -280 MM
5	(PE)Accumulator weight	170 MM
