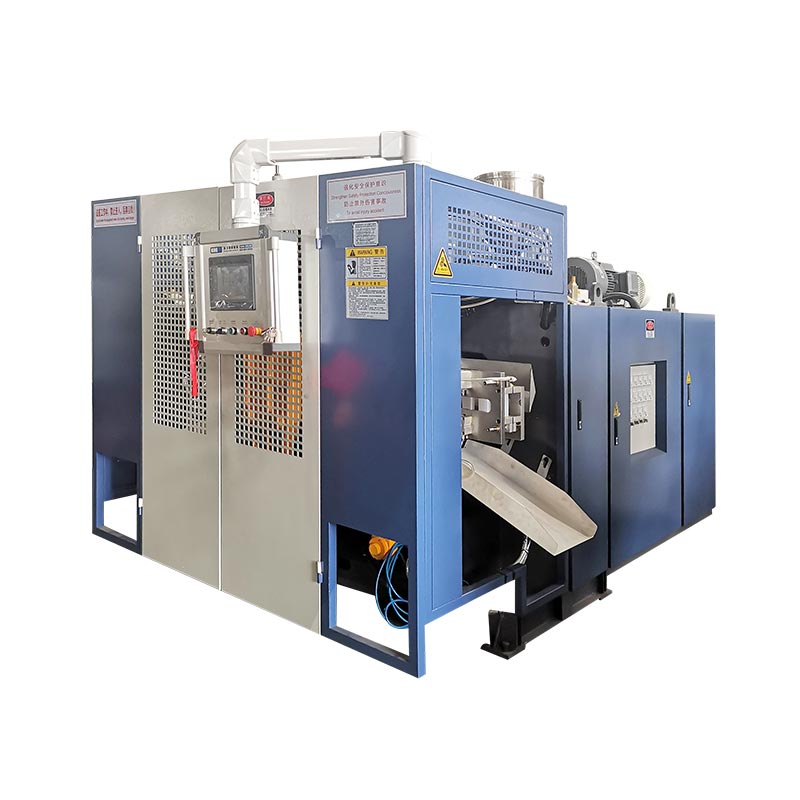

2l sau biyu tashar injin molmin

Model:KGB2D

Kusancin samarwa tare da babban tsarinmu na 2l sau biyu na injin dinka na mashin. An tsara don matsakaicin kwantena na 2L, wannan tsarin halittar rashin dacewa don samar da samfuran samfurori da yawa.

Girma: 2lWeight: 4.5t

Aika tambaya

Bayanin Samfura Specification Application

A sauƙaƙe canjawa zuwa 2, 3, ko 4 Jamian kai mai mutuwar mutuwa don ɗaukar ƙananan ƙaramin kundin yawa don aikace-aikace daban-daban. Daga kwalabe na shamfu don kwalban Motse na Mold ɗin yana buƙatar, wannan ɗakunan ajiya na biyu na kayan moldion ya jawo ingancin ingancin mold. Binciko kwalban filayen filastik ɗinmu mai motsi na inji mai guba kuma buɗe yiwuwar ƙara riba.

Fasali da fa'idodi

Za'a iya ɗaukar tsarin sarrafa lantarki a matsayin "kwakwalwar kwakwalwa" tare da mitsubishi na mitsubishi, tare da ingantaccen umarnin hadaddun aiki daidai. A lokaci guda, da zannun zane mai zurfi na hannu mai zaman kanta ya ba masu aiki da sauri yayin fuskantar ɗabi'un daidaitawa ko kuma samun ingantaccen haɗin kai-mutum-mutum.
A m da multiffunity fasali mai mahimmanci akan samar da ƙananan sikelin-sized da kwantena na 2l kuma a ƙasa. Tsarin jikin mutum ya samu mafi yawan ingantaccen aiki, yana mamaye karamin yanki, yana da sauƙin ɗauka, kuma daidaita daidaitattun abubuwan samarwa daban-daban. Ko ƙaramin bitar ne ko maɗaukaki mai yawa, ana iya sarrafa shi cikin sauƙi, yana samar da mafita mafita ga kamfanoni daban-daban.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB2D
Specification
1	Max container capacity	2L
2	Output(dry Cycle)	600 x 2 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	4.5 T
Clamping Unit
1	Clamping force	40 KN
2	Mold platen size(W×H)	338 MM x 430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM×380 MM
6	Mold thickness	160 MM - 300 MM
Power
1	Servooil pump motor power	11KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	12 KW-18 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*5 ZONE
2	Heating power	3.2 KW
3	Maxdie-pin diameter	90 MM
4	2Center distance of double die head	130MM
5	2MTMax die-pindiameter	60MM
