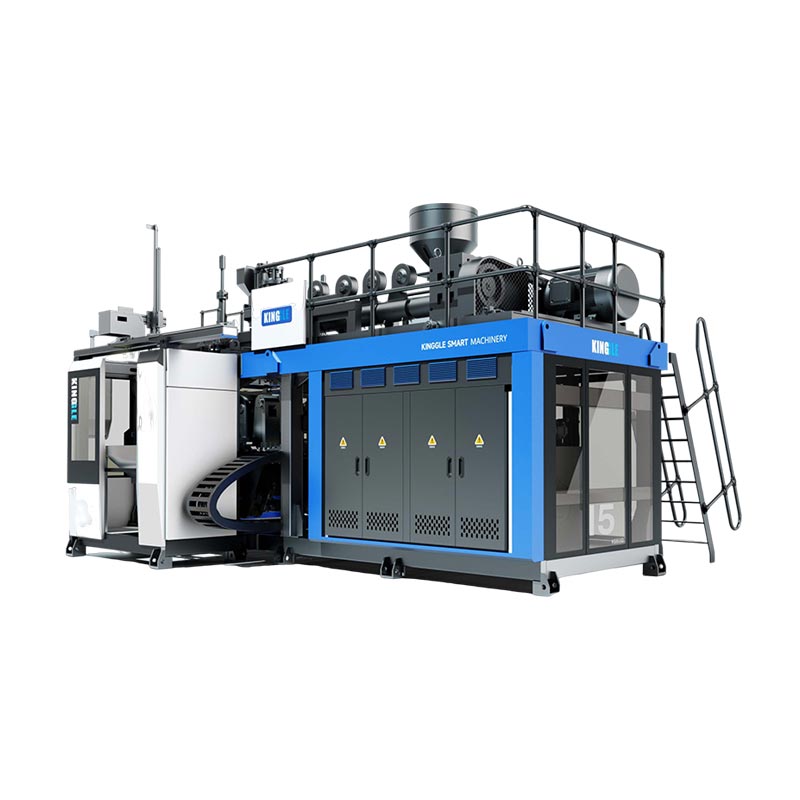

15L Sing Stater Budura Moling Injin

Model:KGB15L

An tsara don haɓaka girma-girma, wannan yanayin ci gaba da mashin moldi ya fi gaban kwantena har zuwa 15l. Tsarin sa na sassauƙa yana ba da damar canzawa tsakanin saiti guda ɗaya da yawa, tabbatar da ingantaccen inganci don masu girma dabam. Kuna iya siyan titin 15l guda ɗaya na moling na injin dinmu daga masana'antarmu.

Girma: 15lWeight: 7.5t

Aika tambaya

Bayanin Samfura Specification Application

Daga kwalabe na shamo don aikace-aikacen injin JerryCan, wannan inji mai juye na Mold Sate Deavidaya yana ba da inganci mai kyau da daidaitaccen aiki. Kusa da ikon samarwa tare da wannan mashin mai ƙarfi da kuma mashin mashin.

Fasali da fa'idodi

Shugaban injina ya yi amfani da hanyar ciyarwar musamman da aka tsara don ƙarfin 15l, daidai ke inganta haɓakar kayan ado na gaba, kuma tabbatar da ingantaccen fitarwa na kwantena na 15l.
Dogaro kan tsarin sarrafawa na lantarki, kamar dai wanda aka yi don tsari na 15l, lokaci mai sauƙi da kuma sarrafa ayyukan juyawa, da lokaci, tare da cikakken daidaitattun abubuwan daidaitawa. Ma'aikata na iya yin daidaituwa sauƙin Ceribration bisa ga ainihin yanayin aiki, tabbatar da cewa samarwa da samarwa sosai cikakkun bukatun kasuwa. Zai iya samar da kwantena 15l tare da wani tsari daban-daban kamar su guda-Layer da kuma abubuwan da ake buƙata don takamaiman kayan sunadarai, abinci da abubuwan sha, samfuran kayan aiki da sauran filayen.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15L
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450 PC/HR
3	Machine Dimension(L×W×H)	4.5M x2.2 M x2.8 M
4	Machine weight	7.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×500 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.8 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	75 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	100 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	30 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
