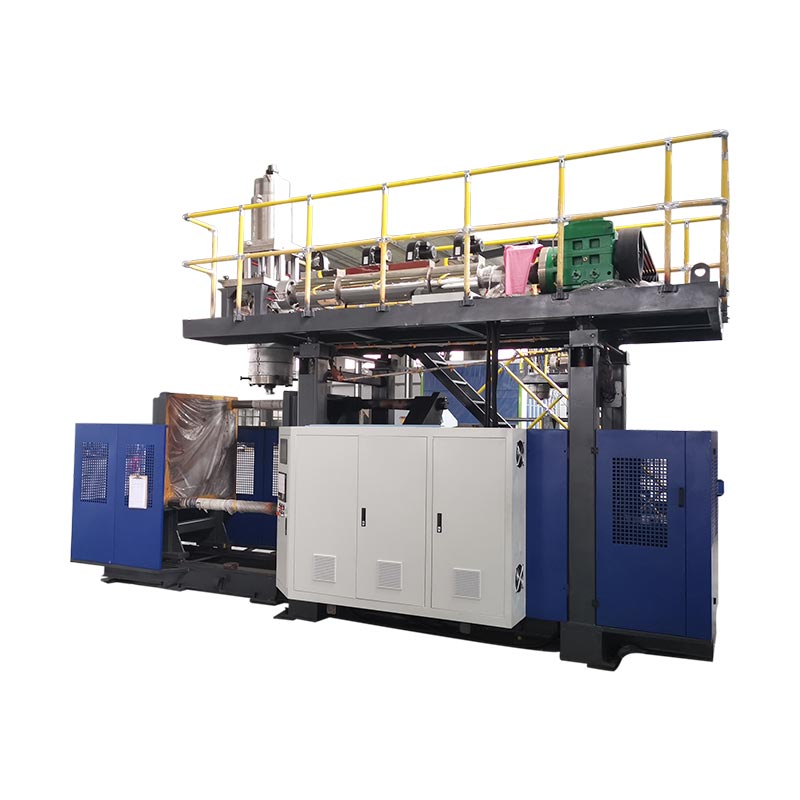

250l tara buri macting inji

Model:KGB120E

Wannan tsayayyen buɗewa da rufe moling moling, nuna ninki biyu ja da matsin lamba na rufe mold, yana kawo babban aiki da inganci. Sanye take da tsarin Serdralic na Hydral don amsa da tanadi mai sauri, wannan 250L tara manyan kayayyaki da yawa, daga ƙananan kwantena zuwa manyan kundin.

Girma: 250lWeight: 28t

Aika tambaya

Bayanin Samfura

Daidaitaccen tsari na KGB120E, wanda ke jagorantar shugaban molmin molmin, ya hada da Mai Gudanar da Gudanarwa 100, Robot Arm, da kuma rauni na ƙasa tsarin, inganta kayan aiki da inganci. Wannan masaraile 250l tara buri moling mold yana da kyau Don aikace-aikace iri-iri, gami da daskararren kayan molmin mafita, filastik na filastik suna busa ƙirar molding mikiya hanya, ruwan filastik Tank mayar aikace-aikace na inji, da samar da 200-220l ganga mai tsayi sau biyu, tanksan mota, sassan motoci, shingen zirga-zirga, magunguna Kayan gida, kujeru masu iyo, kujeru, tebur, pallets, kwalkwali, da ƙari.

Muhawara

Lambar serial	PE PE, PP, Abs ...	Mold rufe silinda (silinda ɗaya)
Lambar serial	PE PE, PP, Abs ...	Tsarin injin: KGB120E
Muhawara
1	Max Capt	250 l
2	Fitarwa (muryar bushe)	300 PC / hr

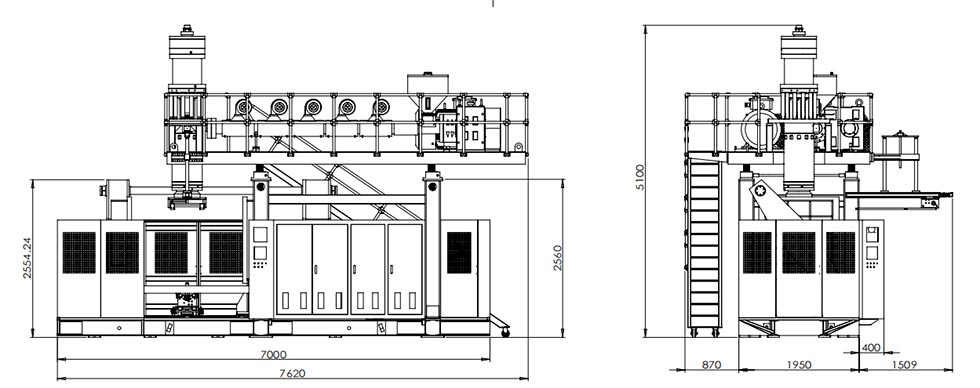

3	Daraji na injin (l× w × h)	7.6 m x 4.3 m x5.5 m
4	Mai nauyi na injin	28 t
Kashi naúrar
1	Clamping karfi	800 kn-1200 kn
2	Molt Marta Girma (W × H)	1300 mm x 1400mm
3	Farantin bude bugun jini	800 mm-1800 mm
4	Platting motsi bugun jini	700 mm
5	Girman mold mold (w × h)	1100 mm x 1700 mm
6	Modyuri na kauri	810 mm - 900 mm
Ƙarfi
1	Servo mai mai famfon	37 KW
2	Serpump	250 l / min
3	Haske matsa lamba	0.8 MPa
4	Amfani da iska	1.8 m³ / min
5	Cooling Ruwa Strike	0.3 MPa
6	Amfani da ruwa	120 l / min
7	Matsakaicin amfani da makamashi	80 KW -90 KW
Underarshe
1	Dunƙule diamita	120 mm
2	Dunƙule l / d rabo	25 l / d
3	Hdpeleting capacit na hdpe	250 kg / hr-320 kg / hr
4	Yawan yankin dumama	6 yankin
5	Dutse mai dumama	30.2 KW
6	Dunƙule	0.6 KW
7	Karuwar ikon mota	90 (110) kW
Mutu shugaban
1	Yawan sashe na dumama	Yankin 5
2	Mai dumama	38.8 KW
3	Max Die-Pin Diameter	600 (700) mm
4	Karfin mai karaya	20 (25) l
5	(Pe) nauyi mai yawa	15 (18) kg

Fasali da fa'idodi

Amfani da samfuran masana'antu a cikin masana'antu daban-daban. Ko yana da manyan kwantena masu tsauri a masana'antar masu guba, ko akwatunan marufi da samfuran sunadarai na yau da kullun.
Tsarin ciyarwar yana ɗaukar fasahar-baki kuma ana inganta shi bisa ga halayen samarwa na ƙwararrun kayan masarufi na 120e. Daidai da ƙididdigar kwararar kayan da rarraba albarkatun ƙasa don tabbatar da ƙwaƙwalwar ƙaƙƙarfan kayan aiki, da kuma kawar da ƙarancin ingancin samfurin, da kuma kawar da lahani masu inganci da ba a cika shi ba.
