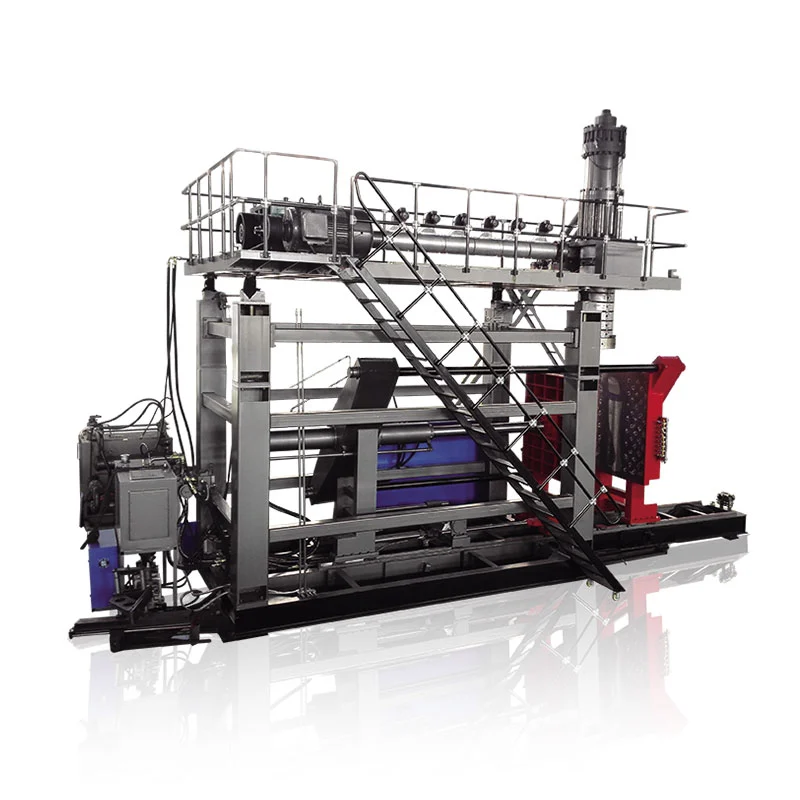

1000l IBC Tankunan ruwa yana tara injin molmin

Model:KGB1000L- IBC

Kwarewa da karfin gwiwa da kwanciyar hankali na KGB1000l IBC Tankuna Deagonal Dougere fouture sanduna da kuma tsararraki na tsakiya uku na silinda ke canzawa tabbatar da rarrabuwar hankali a duk faɗin mold, haɓaka daidaiton samarwa.

Girma: 1000lWeight: 55t

Aika tambaya

Bayanin Samfura Specification Application

WANNAN 1000L IBC Tankunan Tankunan Tankalin Injin Molding ɗin da aka haɗa da ƙa'idodin fasahar fasahar fasahar fasahar tayar da tayar da hankali don rage farashin farashi da inganta tsarin samfuri. Mafi dacewa don samar da kwantena masu ƙarfi, gami da tanki na ruwa da aikace-aikacen IBC, da kuma tankokin mai mai, da ƙari. Tuntube mu a yau don ambaton musamman kuma bincika abubuwan da muke da ruwa na ruwa na molding.

Fasali da fa'idodi

Kayan aikin gabaɗaya na iya kai sama da tan 55, suna rage rawar jiki da watsi da injin, da inganta daidaituwar samarwa da kwanciyar hankali.
● Deagonal Double Double sanduna da Tsakiyar Zaben Zaka Mold Mumbin Matsa, Sheotsi ya fi damuwa sosai kuma ba a sauƙaƙe ba
● Manyan samari da yawa ya rage rage farashin samarwa da inganta ƙididdigar samfur
Or dace da masana'antu na manyan kayayyakin filastik kamar hasumiyar ruwa, tankuna na ajiya, kwantena na sunadarai, da sauransu.

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L
3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
