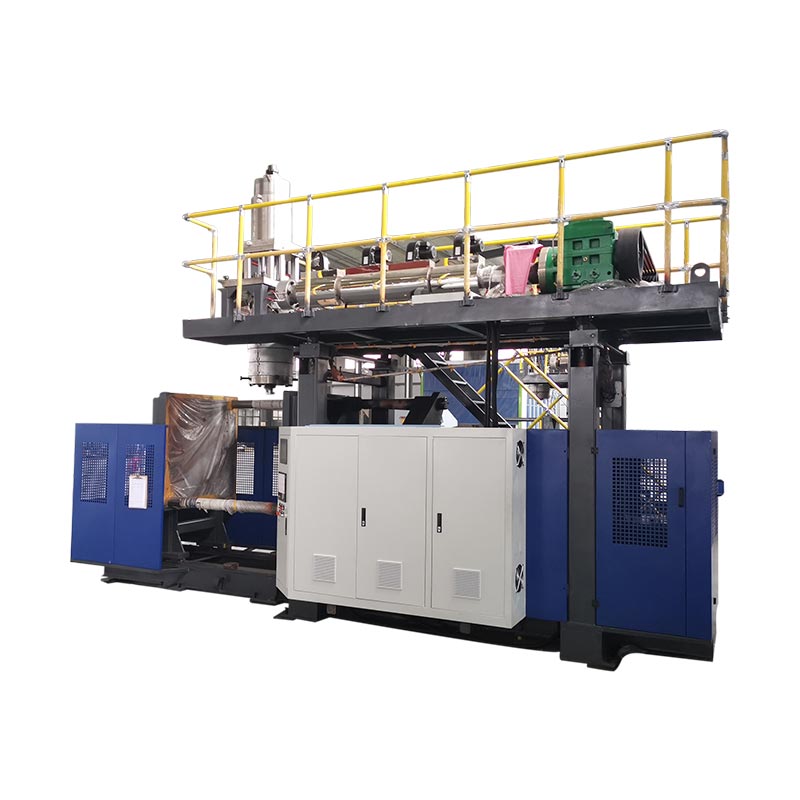

30l ninki biyu tashar injin molmin

Model:KGB100DB

KGB100DB daidaitaccen injiniya ne 30l na biyu na tashar Daidaitawa ta hanyar injin din da aka sabunta don aikace-aikacen mold adacla. An tsara don ƙarin tsayayye 30l Dubawa ta hanyar yin zane-zanen filastik-saiti, kamar jerycans da kwantena masu sinadarai, yana tabbatar da inganci da inganci.

Girma: 30lWeight: 23t

Aika tambaya

Bayanin Samfura Specification Application

KGB100DB shine 30l Rock biyu tashar injin moling, suite don wadancan babban aiki da sauri tare da daidaituwar fifikon iko na kauri abokan ciniki. Ba wai kawai don tsari na yau da kullun ba, sigar musamman ta fi dacewa Don wannan ƙirar mold moling. Ya hada da kauri 100 Mai sarrafawa, Robot Arm, da kuma rauni a ƙasa, inganta yawan aiki da ingancin samfurin.

Fasali da fa'idodi

Tara kai tare da tashar biyu
Kafaffen launi na budewa da rufewa: sanye take tare da ninka tsarin rufewa da inji biyu, tabbatar da madaidaici da madaidaiciyar ƙauyuka. Silinda mai kai tsaye yana amfani da matsin lamba don ingantaccen kulle m.
Adadin ajiya na ajiya ya mutu jerin: wanda aka tsara don daidaitaccen kayan duniya da kuma samar da samfurin ingancin.
Babban ƙarfin: Yana goyan bayan matsakaicin samfurin 120l, yana sa ya dace don samar da manyan kwantena da sassan masana'antu.
Tsarin Hydraulic: Yana da babban aiki na hydraulic, isar da martani na sauri, ingancin makamashi, da rage farashin farashi.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB100DB
Specifications
1	Max container capacity	30 L
2	Output(dry Cycle)	650 PC/HR x 2 PC/HR
3	Machine Dimension(L×W×H)	6.4 M x 6.2 M x 4 M
4	Machine weight	23T
Clamping Unit
1	Clamping force	215 KN
2	Mold platen size(W×H)	750MM×860 MM
3	Platen openingstroke	350 MM -850 MM
4	Platen moving stroke	/
5	Max mold size(W×H)	520 MM ×860 MM
6	Mold thickness	360 MM -420 MM
Power
1	Servooil pump motor power	11 KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	0.7 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	45 KW - 60 KW
Extruder unit
1	Screw diameter	100 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	160 Kg/hr -200 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	22.4 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	55 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	22.8 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	5 L
5	(PE)Accumulator weight	3.75 KG
