60L Mai ba da lissafi na Mold

Model:KGB90AP

Don KGB9Lap, mai samar da mai ƙarfi na 60l Complatolator Bugun molmin inji wanda ke nuna fyaɗe na biyu ko bugun fenti mai launi biyu. Yana da musamman wanda aka tsara don aikace-aikacen mold da sau biyu na injiniyan / kamar kwantena na yau da kullun, yana tabbatar da dogaro da kayan aiki na yau da kullun.

Girma: 60lWeight: 15t

Aika tambaya

Bayanin Samfura Specification Application

KGB90AP 60L Mai ba da izini na mold na iya dacewa da layi biyu ko buƙatun samar da launi biyu don mika Samfurin Rang.
Ya hada da Mai Gudanar da Gudanarwa 100, Robot Arm, da kuma rauni na ƙasa tsarin, inganta kayan aiki da ingancin samfurin. Wannan injin din ya fi dacewa ya dace da aikace-aikace iri-iri, gami da fashewar kayan masarufi mafita na inji, filastik Fastrusion busa ƙimar moling matakai ,.

Fasali da fa'idodi

Wannan samfurin ƙayyadadden keɓaɓɓu ne da kuma rufewa, ta amfani da sanda biyu Synchronous Muntidly rufe tsarin, da silinda mai kai tsaye matsawa
Sauran Sayen ajiya ya mutu jerin
Matsakaicin matsakaici na 60l
Akwatin Foto na Fotool, da sauransu.
Amfani da Fasaha na Musamman, Mold Mold Clapting Tsarin Tsararraki, babban claming karfi, saurin motsi mai sauri, gajeren tsarin

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB90AP
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

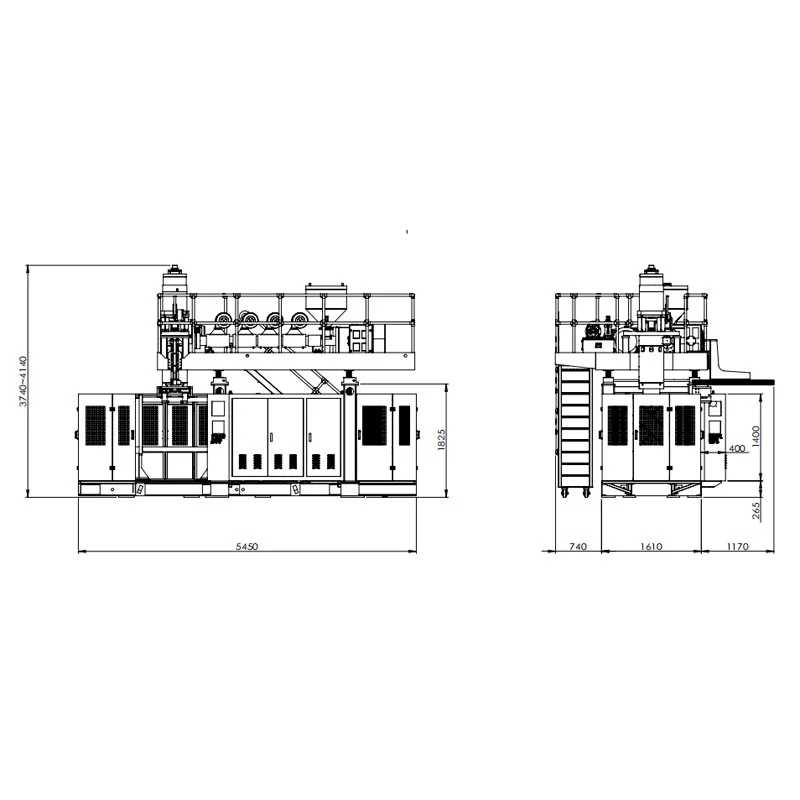

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	15T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen openingstroke	450 MM -1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM×980 MM
6	Mold thickness	460 MM -550 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	150 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW - 45 KW
Extruder unit
1	Screw diameter	2*70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr - 160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	2*22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Maxdie-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
