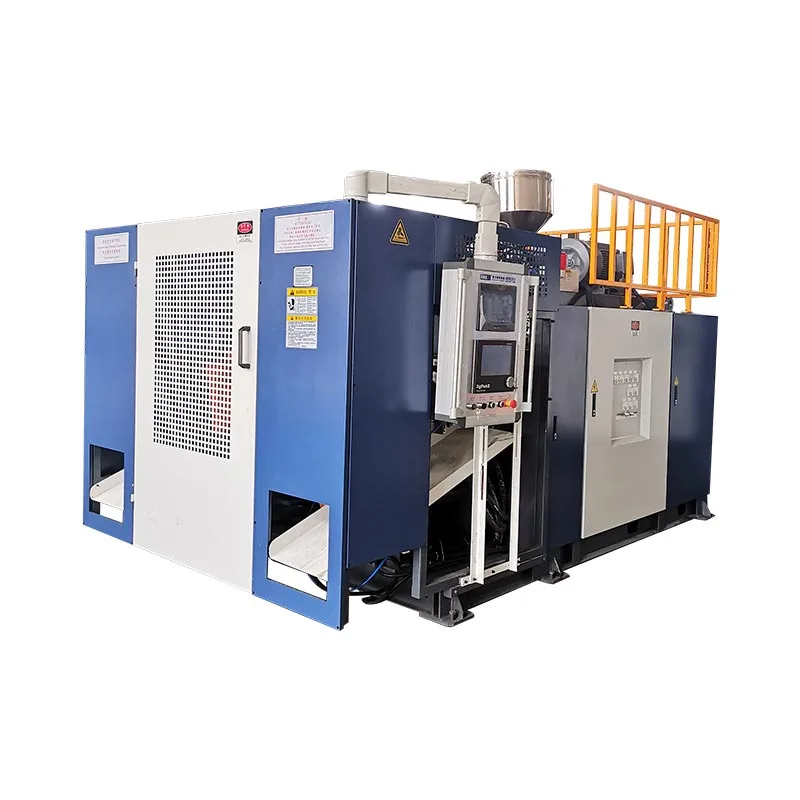

5L Dubawa mai busa na'urar

Model:KGB5D

Kusancin samarwa tare da namu 5l ninki biyu tashar injin moling inji. Wannan mashin mai aiki yana ba da daidaitattun daidaitattun abubuwa, gami da saitin kai na 2, 3, ko 4 na mutu.

Girma: 5lWeight: 52t

Aika tambaya

Bayanin Samfura Specification Application

Daga kwalabe-kananan karami zuwa manyan kwantena na 5l, wannan injin 5L mai tsananin sauti yana tabbatar da ingantaccen samarwa da ingancin inganci. Mafi dacewa don aikace-aikace daban-daban, gami da kayan wanki mai wanki ya fashe mafita. Yana kawo fitarwa na musamman kuma yana ƙara dawowar ku akan zuba jari.

Fasali da fa'idodi

● Canji sau biyu canzawa, ta amfani da buffer prayglle bawul bawul na m
● Shugaban ya mutu ya dauki nauyin ciyar da cibiyar
Kamfanin sarrafa lantarki na lantarki yana ɗaukar ikon Mitsubishi na Mitsubidi, da kuma Maɓallin Manya mai ƙarfi na Mits Fuskanta da daidaitawa.
Babbar samfurin samfurin shine 5l, wanda shine kayan da aka fi so don samar da taro na ƙasa da 2-5l.
● Dangane da halaye, ana iya rarrabu zuwa guda ɗaya, Layer sau biyu, yanki uku, m layi, da sauransu.
Tsarin hydraulic yana karbar ƙira ta bambanci, ingantaccen aiki da sauri sauri

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
