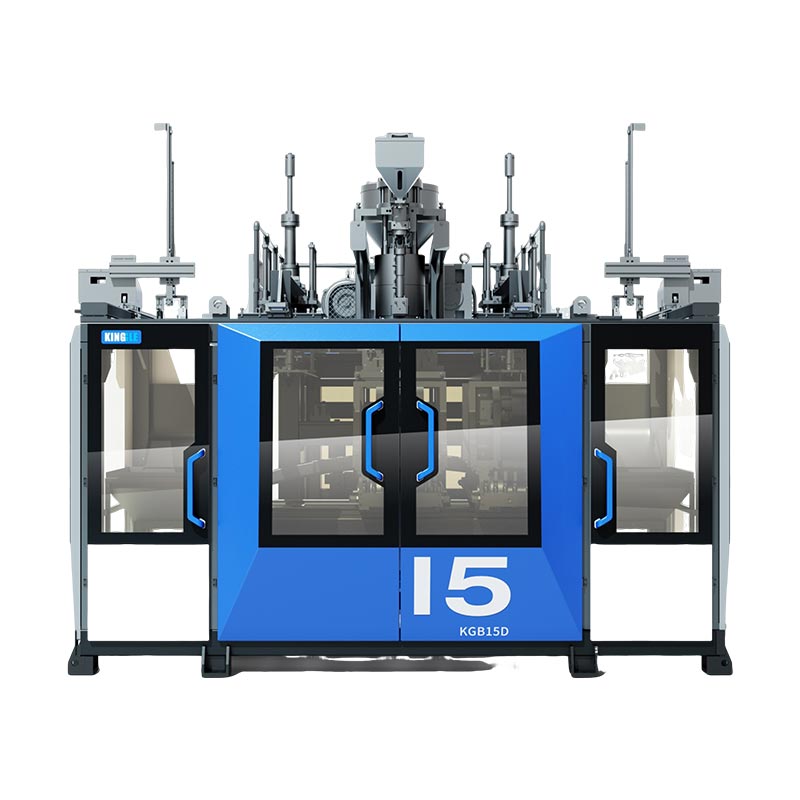

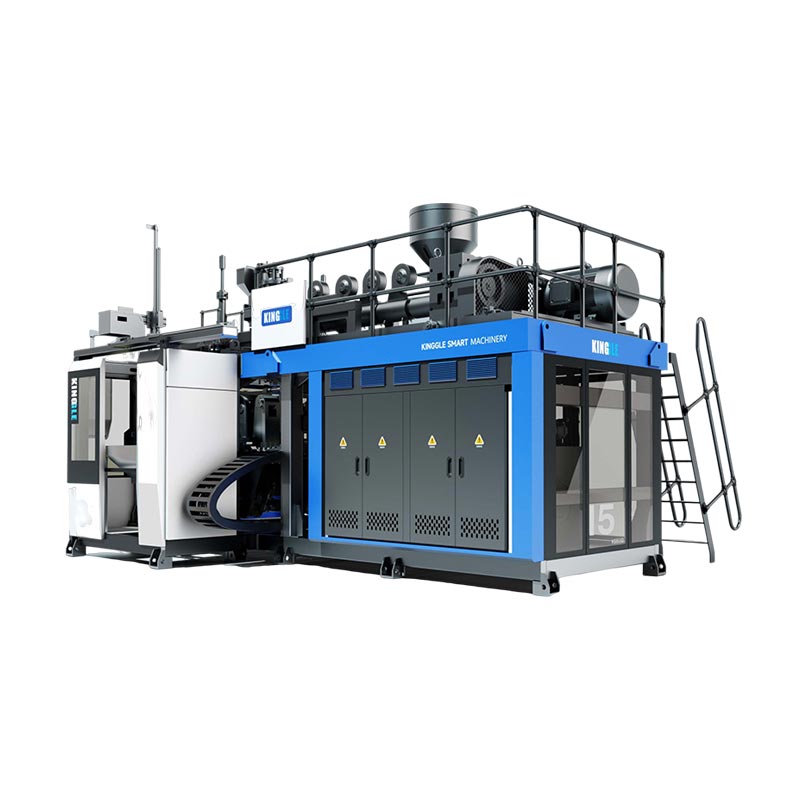

15L Dubawa mai busa na'urar

Model:KGB15D

Matsakaitawa saminku tare da ci gaba da keɓawa sau biyu, wanda aka tsara don kwantena har zuwa 15l. Wannan babban aikin 15l Dubawa mai launin moling na moling macts yana ba da saiti mai sauƙi, gami da saitin kai na 2, 3, ko 4 na mutu.

Girma: 15lWeight: 12.5t

Aika tambaya

Bayanin Samfura Specification Application

Daga ƙananan ƙananan girma zuwa manyan kwantena na 15l, gami da filastik na filastik na moling macting na tabbatar da ingantaccen samarwa da inganci mai inganci. Mafi dacewa ga aikace-aikace daban-daban, gami da magungunan mikiya na yau da kullun, kamar kayan maye, da kayan wanki, da kuma na kawo fitarwa na musamman kuma yana iya kawo ƙarshen dawowa akan saka hannun jari.

Fasali da fa'idodi

Aikin tashar Taro biyu, aiki tare da aiwatar da tsarin samarwa, taqaitaccen tsarin aiwatar da kwantena na 30l, kusan ninki biyu na samarwa idan aka kwatanta da tashar guda, kuma ta cika bukatun babban sikelin.
An sanye take da madaidaitan na'urar saiti, Buffer Threotlle bawul na iko, canjin yanayi mai sauri, ƙarancin lalacewa, tabbatar da ingantaccen tsari.
Mitsubishi PLC Babban sarrafawa, shirin saita pre-saita don daidaitaccen sigogi na Mold, makullin makirci don yin amfani da buƙata, da kuma ta dace da hulɗa-inji-inji.
Zamu iya samar da kwantena na 1500 tare da guda-Layer, Layer-Layer, da kuma faɗakarwa da kuma m layi kamar yadda ake buƙata kamar su sunadarai, abinci, da magunguna.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15D
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450x2 PC/HR
3	Machine Dimension(L×W×H)	4.8M x2.9 M x2.8 M
4	Machine weight	12.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×550 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.1 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	110 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	120 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
