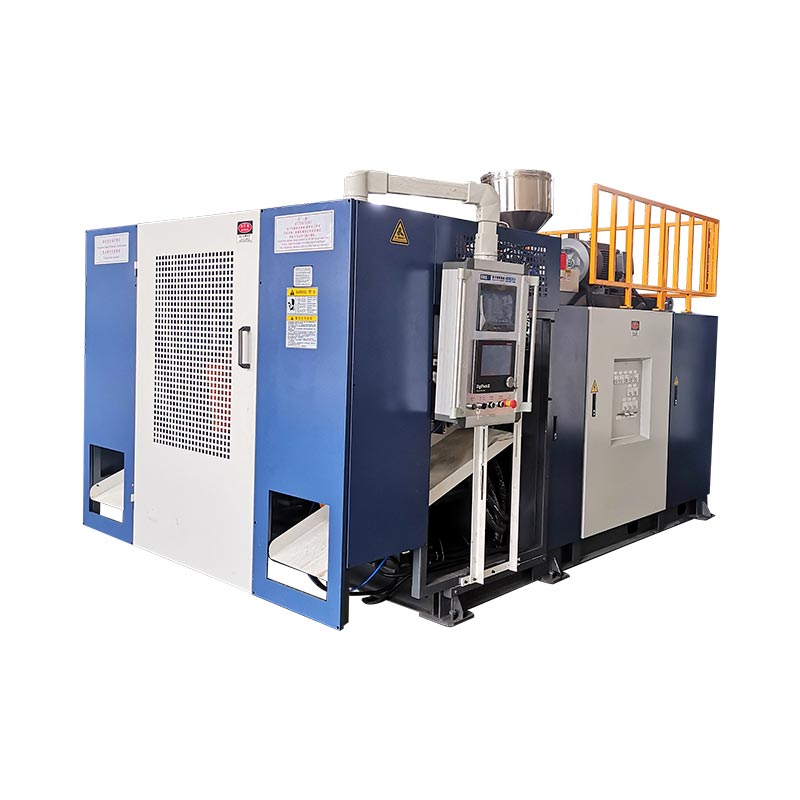

2l Sleaya Stater Bugawa Mold

Model:KGB2L

Wannan injin m mold mactigar, dace da m akwati na tsami, yana da bambanci sosai. Yana ba da zaɓi don canzawa zuwa Kanfigareshan kai na 2, 3 ko 4 na mutu, yana ba da izinin samar da ƙwayoyin kwalban ruwa na 100ML 1 ta amfani da ƙwayoyin gyada mai ƙarfi.

Girma: 2lWeight: 2.5t

Aika tambaya

Bayanin Samfura Specification Application

Wannan sassauci yana haɓaka fitarwa na yau da kullun, yana sanya shi ingantaccen bayani don masana'antun da ke neman haɓaka yawan aiki yayin riƙe ingancin samfurin. Yi amfani da wannan injin 2l guda ɗaya na mold moly don samar da watsawa marti, kayan wanki, samfuran kayan wanki, da kuma zubar da ruwa. Don manyan kundin, la'akari da kwalbanmu na 5l ko 15L injin molli mai amfani da zaɓuɓɓukan saiti da yawa.

Fasali da fa'idodi

Matsayi na Tasti na Single Sassarar Tsarin Tsarin Kayayyaki, sanye take da madaidaicin kayan kwalliyar kayan kwalliya don tabbatar da ingantacciyar hanya mai kyau.
● Rike na mutu an tsara shi tare da tsarin ciyar da abinci, inganta rarraba kayan don inganta ingancin samfurin.
● Babban tsarin sarrafawa na lantarki shine powered by mitsubishi pls, kuma ya zo tare da ikon jagora na hannu, ba da izinin masu aiki da daidaitattun masu gyara da sauƙi.
Tare da matsakaicin adadin samfurin ƙara 2l, yana tsaye a matsayin zaɓi na saman-ƙarfi na kwantena na kwantena na kwantena na 50mL zuwa 2l zuwa 2l.
A cikin sharuddan halaye na kayan, yana ba da zaɓuɓɓuka masu ma'ana ciki har da-Layer, wani yanki mai uku, da kuma bambance-bambancen karatu, har ma da bambance-bambancen ƙasa don biyan bukatun kasuwar da bambancin.
Tsarin hydraulic yana da alaƙa da ƙira daban-daban, isar da babban aiki da sauri amsa mai sauri, haɓaka haɓakar haɓakawa gaba ɗaya.

Specifications

serial number	Material PE、PP、PVC、PA...	Mold-moving series
serial number	Material PE、PP、PVC、PA...	Machine model:KGB2L
Specifications
1	Max container capacity	2L
2	Output(dry Cycle)	600 PC/HR
3	Machine Dimension(L×W×H)	3.1 M x 1.7 M x 2.5 M
4	Machine weight	2.5T
Clamping Unit
1	Clamping force	40KN
2	Mold platen size(W×H)	380 MM x430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM x 380MM
6	Mold thickness	160 MM - 300MM
Power
1	Servooil pump motor power	11 KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	50 L/min
7	Average energy consumption	12-18 KW
Extruder unit
1	Screw diameter	50 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	30 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	7.5 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	11KW
Die head
1	Number of heating sections	3 * 5 ZONE
2	Heating power	3.2 KW
3	1MTMaxdie-pin diameter	90 MM
4	2Center distance of double die head	130 MM
5	2MTMax die-pindiameter	60 MM
