Babban gudu 15l seet titin moling inji

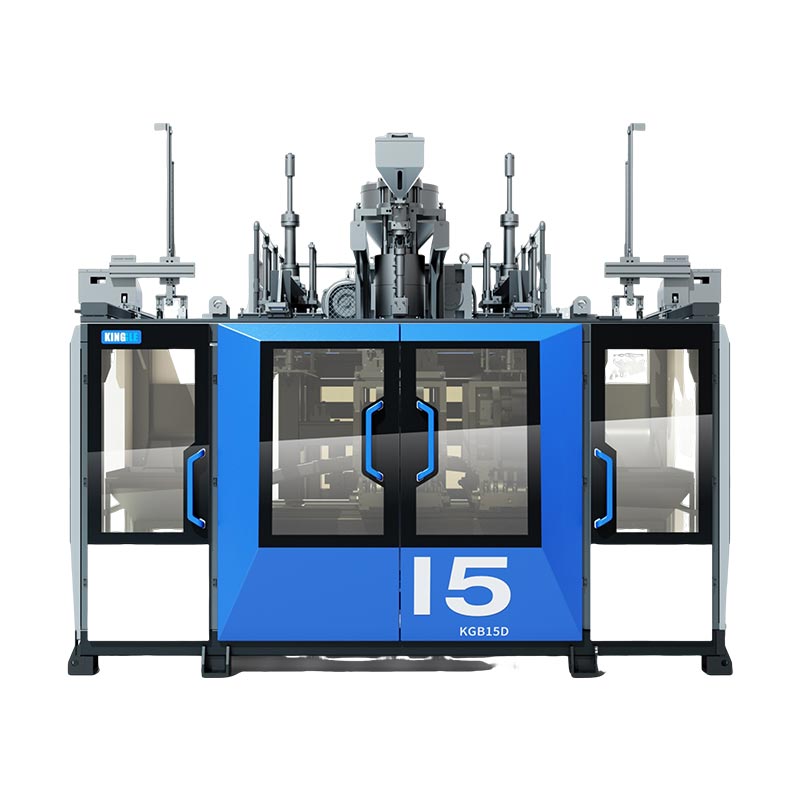

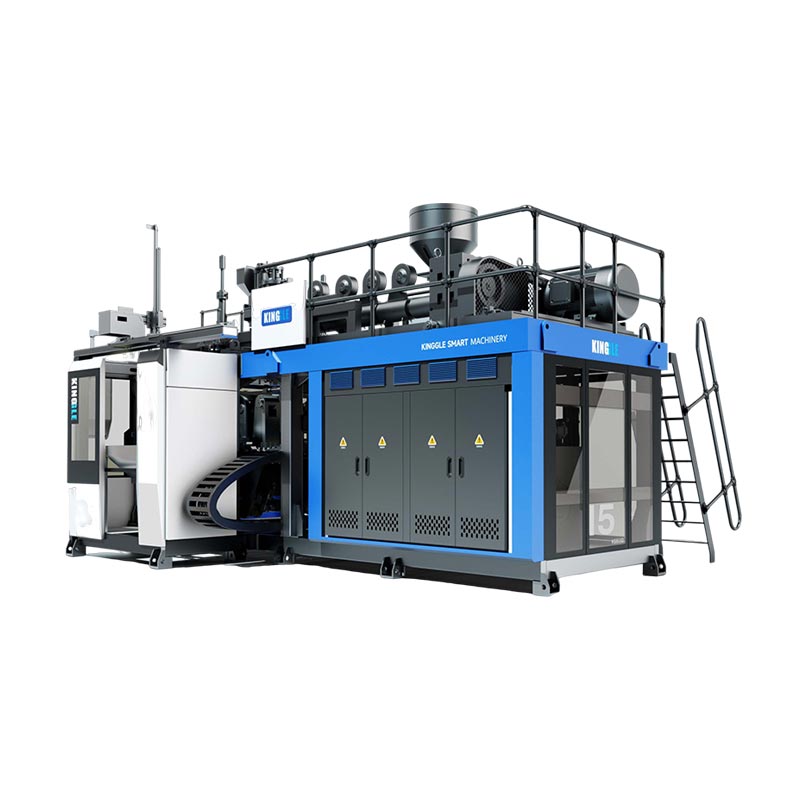

Model:KGH15L

Sanya ikon samar da kayan samarwa tare da Kgh15L High Speed 15l Selet Sate Tashar inji don mayar da filastik Extrusion Flatsion 5l Aikace-aikace! Na'urar mai laushi mai lankwasa mai rauni don samar da ƙarin matsakaicin matsakaicin murɗa, yin cikakken kwalban / ganga ganga.

Girma: 15lWeight: 7.5t

Aika tambaya

Bayanin Samfura Specification Application

Kgh15L High gudu gudu 15l Stow tashar na'urar mold bawai injin bane, amma abokin tarayya ne na kasuwanci neman haɓakawa zuwa samar da hankali. Tsarin ƙirar sa na zamani Fadada ta gaba da haɓakawa, suna dacewa da mahimman ayyukan atomatik kamar atomatik cirewa na atomatik da binciken kan layi, taimaka wa masana'antu Wajen masana'antu 4.0.

Fasali da fa'idodi

Cikakken tashar guda ɗaya an tsara don na'urar moldius ɗin don samar da karawa, yana bayar da sassauci da inganci don kwantena har zuwa 15l. Tsarin ƙirarsa yana ba da damar sauƙaƙe tsakanin ɗakunan da aka mutu da yawa, yana tabbatar da kyakkyawan aiki a duk fadin masu girma dabam.
Wannan inji yana fitowa don babban ƙarfinsa, yana buɗe sauye sauye-sauye tsakanin saiti don haɓaka fitarwa kuma rage nakin. Hakanan yana da natsuwa, mai iya haifar da kwantena da yawa daga kwalabe daban-daban, yana tabbatar da hakan don masana'antu daban-daban.
Tare da mafi inganci, yana tabbatar da daidaituwa da daidaito, saduwa da mafi girman ƙa'idodi. Bugu da ƙari, ƙirarta mai inganci tana rage kashe kudaden aiki yayin inganta yawan aiki. Gina don dogaro, injin yayi ci gaba tare da sakamako mai zurfi, har ma a cikin yanayin buƙatu.
Ka haɗu da ikon samarwa tare da wannan mashin da ingantaccen injin da ke kawo inganci da inganci.

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGH15L
Specifications
1	Max container capacity	15 L
2	Output(dry Cycle)	450 PC/HR
3	Machine Dimension(L×W×H)	4.5 M x 2.2 M x 2.8 M
4	Machine weight	7.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM -680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM x 500 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.8 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	25-34 KW
Extruder unit
1	Screw diameter	75 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	100 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	30 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	240 MM - 280 MM
5	(PE)Accumulator weight	150 MM
