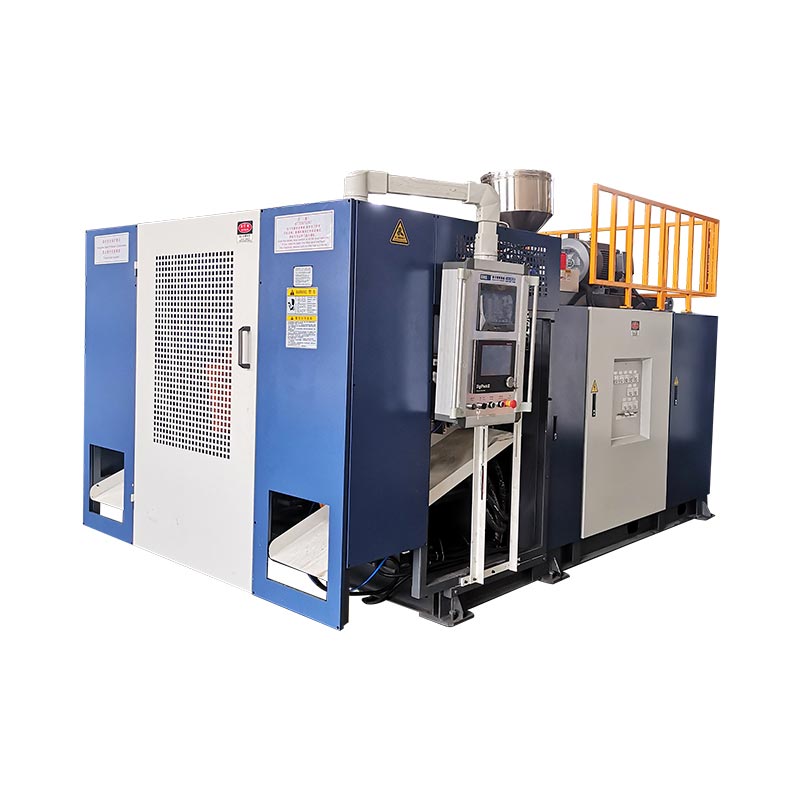

5l Single Tasirin Mold Injin

Model:KGB5L

Kwarewa da sassauci da ingancin aikin mu guda ɗaya na ci gaba da injin moldi. An tsara shi har zuwa kwantena 5l, wannan mashin mai moling moling yana ba da tsari na tsari, gami da sadaukar zaɓi guda biyu, don biyan takamaiman bukatun samarwa.

Girma: 5lWeight: 3.0t

Aika tambaya

Bayanin Samfura Specification Application

Ko kuna buƙatar saitin da aka sadaukar 5l guda ɗaya. Tuntube mu a yau don bincika farashin da aka yi da gano yadda wannan injin zai iya haɓaka ƙarfin samarwa.

Fasali da fa'idodi

● Stassaramin tashar tassar da sauyi na juyawa, sanye take da madaidaitan kayan kwalliyar kayan kwalliya don tabbatar da ingantacciyar hanya.
● Rike na mutu an tsara shi tare da tsarin ciyar da abinci, inganta rarraba kayan don inganta ingancin samfurin.
● Babban tsarin sarrafawa na lantarki shine powered by mitsubishi pls, kuma ya zo tare da ikon jagora na hannu, ba da izinin masu aiki da daidaitattun masu gyara da sauƙi.
Tare da matsakaicin adadin samfurin ƙara na 5l, yana tsaye a matsayin babban zaɓi don samar da karancin kwantena na kwantena daga 2L zuwa 5l.
A cikin sharuddan halaye na kayan, yana ba da zaɓuɓɓuka masu ma'ana ciki har da-Layer, wani yanki mai uku, da kuma bambance-bambancen karatu, har ma da bambance-bambancen ƙasa don biyan bukatun kasuwar da bambancin.
Tsarin hydraulic yana da alaƙa da ƙira daban-daban, isar da babban aiki da sauri amsa mai sauri, haɓaka haɓakar haɓakawa gaba ɗaya.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB5L
Specification
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	3.0 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MM x 450 MM
3	Platen openingstroke	188 MM -538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM - 310 MM
Power
1	Servooil pump motor power	15KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	Maxdie-pin diameter	150 MM
4	2Center distance of double die head	150-180MM
5	2MTMax die-pindiameter	80MM
