250l tara da kayan kwalliyar ƙwayar cuta ta musamman

Model:KGB200L/LP

Wannan na musamman 250l tara na'urar ƙwayoyin cuta ta musamman ta hanyar musamman don samar da babban ganga mai kyau 220l sau biyu-zobe biyu. Yana amfani da ƙayyadadden tsarin rufewa tare da obque hannu ninka ya zana kimantawa da tsinkaye da tsoratar da motsi mai dorewa.

Girma: 250lWeight: 39t

Aika tambaya

Bayanin Samfura

A sau biyu-Layer-Layer, sau biyu-bleulrow masarauta mutu shugaban, hade Tare da babban aikin EXPERBRADE na Experroder, yana ba da sakamako na musamman. Wannan Ansicar Rarra Rarra inji inji inji hade da wani mirgina ruwa 100 Mai sarrafawa, Robot Ach, da kuma hurarrun tsarin don inganta ƙarfin. Dandalin da aka samar sun cika ka'idojin mawuyacin hali, gami da wucewa 1-mita gwaji da samun takaddun UNS.

Muhawara

Lambar serial	PE PE, PP, Abs, Hmwhdpe ..	Kafaffen nau'in rufewa Na'urar injin sana'a
Lambar serial	PE PE, PP, Abs, Hmwhdpe ..	Tsarin injin: KGB200L / LP
Muhawara
1	Max Capt	250 l
2	Fitarwa (muryar bushe)	300 PC / hr

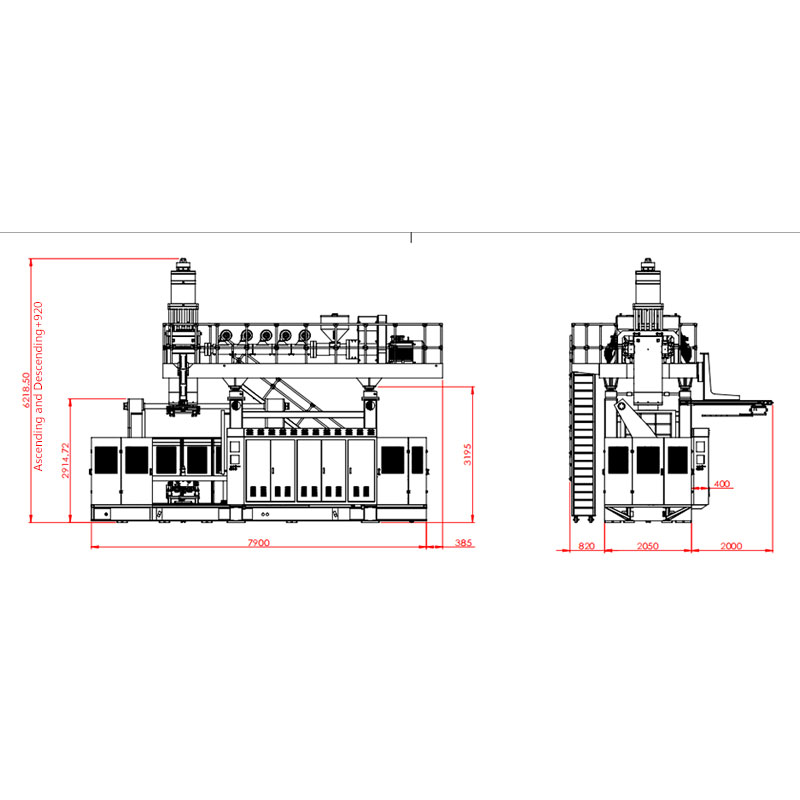

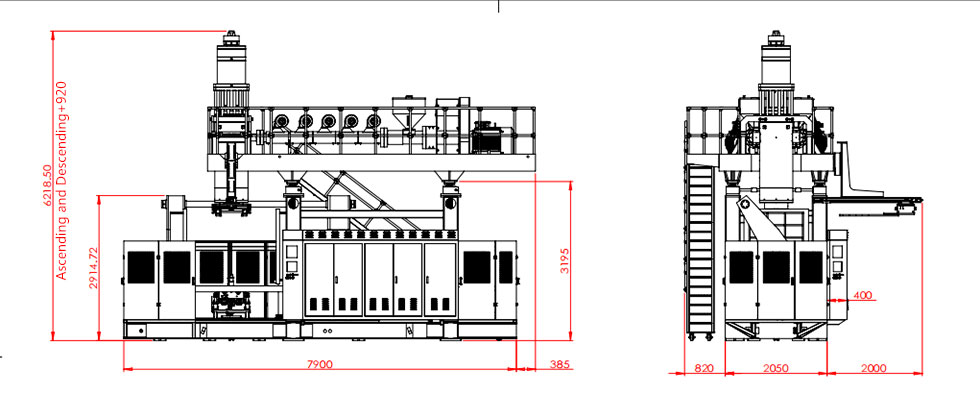

3	Daraji na injin (l× w × h)	9.5 m x 4.1 m x 6.5 m
4	Mai nauyi na injin	39 t
Kashi naúrar
1	Clamping karfi	760 Kn
2	Molt Marta Girma (W × H)	1300 mm x 1500 mm
3	Farantin bude bugun jini	800 mm - 1800 mm
4	Platting motsi bugun jini	950 mm
5	Girman mold mold (w × h)	1100 mm × 1700 mm
6	Modyuri na kauri	810 mm-950 mm
Ƙarfi
1	Servo mai mai famfon	37 K + 22 KW
2	Serpump	200 l / min + 138 l / min
3	Haske matsa lamba	0.8 MPa
4	Amfani da iska	1.8 m³ / min
5	Cooling Ruwa Strike	0.3 MPa
6	Amfani da ruwa	120 l / min
7	Matsakaicin amfani da makamashi	70 KW- 80 KW
Underarshe
1	Dunƙule diamita	100 mmx2 mm
2	Dunƙule l / d rabo	32 L / D
3	Narke mai karfin gwiwa don hdpe	180 kg / hr x 2 kg / hr
4	Yawan yankin dumama	6 yankin
5	Dutse mai dumama	30.2 KW
6	Dunƙule	0.6 KW
7	Karuwar ikon mota	90 kW x 2 kw
Mutu shugaban
1	Yawan sashe na dumama	Yankin 5
2	Mai dumama	38.8 KW
3	Max Die-Pin Diameter	450 mm
4	Karfin mai karaya	25 l
5	(Pe) nauyi mai yawa	18 kg

Fasali da fa'idodi

Zubauke kwance a kwance na Cibiyar Kirkin Cibiyar Kirsimeti ya mutu kai
● cimma babban ikon samarwa ta hanyar ingantaccen tsari da daidaito masana'antu, mai iya haifar da guda 17-20
● Maza da aka samar suna iya wucewa da gwajin 3m da cikakkiyar Majalisar Dinkin Duniya ba da takardar shaida

Yankunan aikace-aikace

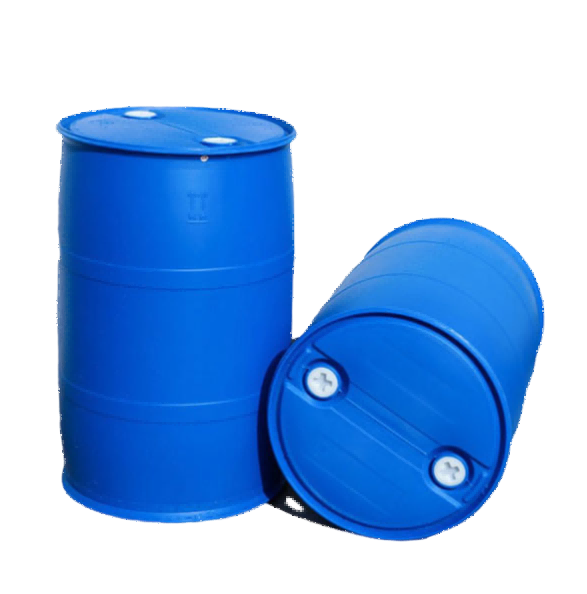

Na biyu Layer 220l Double-zoben burodin rijistar busa ƙirar mold

200l ganga mai nauyi: 12-15 kilogiram

Abu: hmwhdpe

Kauri: 3.5-4 mm

Wannan keɓaɓɓen ƙwayar ƙwayar ƙwayar ƙwayar cuta ta ƙwarewa an tsara shi don ingantaccen samar da manyan ƙimar ƙwararrun 220l sau biyu. Yin amfani da ƙayyadadden tsarin rufewa, oblique hannu ninka ya mutu tare, mai mulki ya mutu ya mutu shugaban, ya sa na musamman aiwatarwa.

Double layer 220L double-ring chemical barrel blow molding machine
