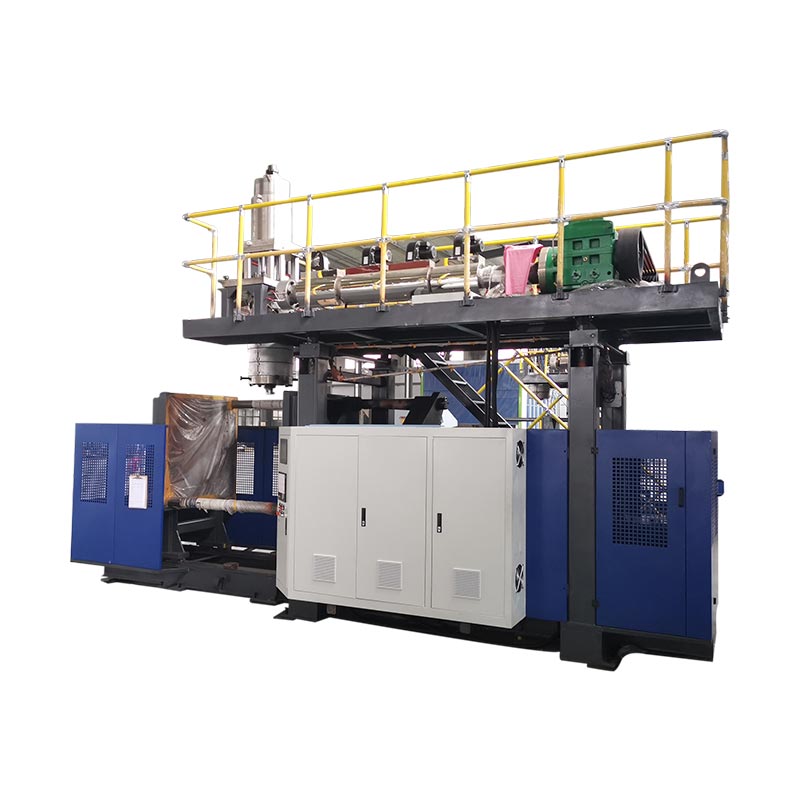

Filastik zagaye tebur busa injin mold

Model:KGS120Y

Sarki Kgs120y ne mai dorewa tebur mai dorewa teburin molding din da aka keɓance don aikace-aikacen zagaye na aikace-aikace. Daidai ya cika tebur na filastik ko filastik na filastik mai lalacewa, yana ba da zane-zane na musamman da kuma ingancin ƙira, yana ba ku baki sosai.

Girma: 2000lWeight: 42t

Aika tambaya

Bayanin Samfura Specification Application Workshop

Kgs 120y 183 filastik zagaye tebur busa na'urar moling ne ƙirƙira don kwamitin filastik nau'in samfurin, kamar Table / Ware Hour ETCL Injin na iya cikakken saduwa da waɗannan buƙatun samarwa na musamman na musamman, Tare da haɓaka mai sauri don adana farashin naúrar.
Ya hada da Mai Gudanar da Gudanarwa 100, Robot Arm, da kuma rauni na ƙasa tsarin, inganta kayan aiki da inganci.

Fasali da fa'idodi

Amfani da samfuran masana'antu a cikin masana'antu daban-daban. Ko yana da manyan kwantena masu tsauri a masana'antar masu guba, ko akwatunan marufi da samfuran sunadarai na yau da kullun.
Tsarin ciyarwar da ake amfani da fasahar egting-baki kuma an inganta shi dangane da halayen samarwa na mayaƙan yawan masu amfani da ruwa na 1200. Daidai da ƙididdigar kwararar kayan da rarraba albarkatun ƙasa don tabbatar da ƙwaƙwalwar ƙaƙƙarfan kayan aiki, da kuma kawar da ƙarancin ingancin samfurin, da kuma kawar da lahani masu inganci da ba a cika shi ba.

Specifications

serial number	Material HDPE…	Mold closing oil cylinder(three cylinders)
serial number	Material HDPE…	Machine model:KGS120Z
Specifications
1	Max container capacity	2000 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	8.3 M ×3.4 M × 6.8 M
4	Machine weight	42 T
Clamping Unit
1	Clamping force	1800 KN
2	Mold platen size(W×H)	1600 MM×1900 MM
3	Platen openingstroke	600 MM-1800 MM
4	Platen moving stroke	700 MM
5	Max mold size(W×H)	1650 MM×19000 MM
6	Mold thickness	830MM - 1030 MM
Power
1	Servooil pump motor power	25 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	2 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW -130 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	30 L/D
3	Melting capacit for HDPE	350 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	32.5 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	132 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Maxdie-pin diameter	800(950) MM
4	Accumulator capacity	45(60) L
5	(PE)Accumulator weight	33(45) KG
