Abs na musamman injin mashin

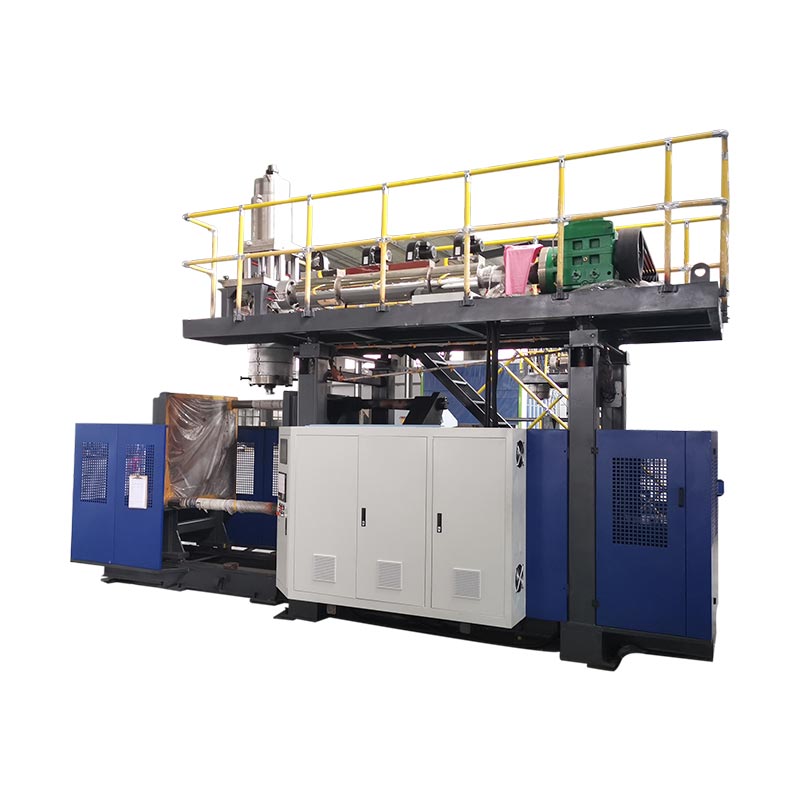

Model:KGB110A-ABS

Canza samar da sassan motocinku tare da KGB110A-ABS-ABD Abs na musamman injin aikace-aikacen da aikace-aikacen atomatik! Cikakke ga wuraren da masu shan kayan molds mashin na da ke buƙatar kamar watsawa da dashboards, yana taimaka maka ka jagoranci kasuwar mota da ingancin inganci.

Girma: /Weight: 25T

Aika tambaya

Bayanin Samfura Specification Application

KGB110A - Abs shine samfurin ƙirar ƙirar Molding don waɗancan sassan mota mai masana'anta. Injin na musamman da molmin moly tare da mafi girman matsi da hurawa ga Createirƙiri cikakken surface don adana lokacin Post. Da kuma na'urar al'ada plenten don dacewa da kayayyakin masana'antar masana'antu, ajiye farashin jari mai injin.

Fasali da fa'idodi

Digging zurfi cikin yuwuwar fasaha na iya samar da mafita samfuri mai ƙarfi don abokan ciniki waɗanda ke bin farashi mai inganci; Hakanan zai iya gina tsari biyu ko kuma da yawa-Layer Halin da ke tare da mai fasahar
Hanyoyi masu karfafawa na 110a-AB AB AB AS-ABS CUTHING na'ura mai ƙarfi tare da mai ƙarfi da ingantaccen tsarin ikon hydraulic. Ci gaba da raunin wutar lantarki yana da tabbataccen isar da agile da kuma kulawar aiki mai ƙarfi da kuma ingantaccen aiki na wulakanci, kayan aiki na iya kula da kyakkyawan yanayi da kuma fitowar kayayyaki masu inganci.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB110A-ABS
Specifications
1	Max container capacity	/
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M x 5.2 M
4	Machine weight	25 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1100 MM x1600 MM
3	Platen openingstroke	600 MM -1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	1000 MM×1400 MM
6	Mold thickness	610 MM -750 MM
Power
1	Servooil pump motor power	30 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	28 L/D
3	Melting capacit for HDPE	180 Kg/hr -220 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.5 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	12(20) L
5	(PE)Accumulator weight	9(15) KG
